SawStop Brake Cartridge For 10" Blades

SawStop Brake Cartridge For 10" Blades 11972901

Sale price USD $61.48 Regular price

Quantity

Order summary

SawStop Brake Cartridge For 10" Blades

61.48

Have a discount code?

Coupon code applied will be stored on your account

Subtotal

Shipping calculated at checkout.

Brand	SawStop
Blade Material	High Speed Steel
Surface Recommendation	Wood
Power Source	Corded Electric
Special Feature	Brake

Revolutionary SawStop protection: Standard brake cartridge stops the spinning blade on contact with skin reducing the chances of a catastrophic injury
Compatible with all standard 10″ blades. Replaces TSBC-10R2 (equivalent to TSBC-10R2). Not compatible with CB Model Saws (CB Model Saws use TSBC-10L)
Compatible with all woods and other non-conductive materials
1 locking key allows the user to quickly and easily switch between the standard brake cartridge and dado brake cartridge when making standard or dado cuts
For Use with Saw Type(s): ICS, PCS, CNS, and JSS Model Saws, Equivalent To TSBC-10R2

Brand

‎SawStop

Blade Material

‎High Speed Steel

Surface Recommendation

‎Wood

Power Source

‎Corded Electric

Special Feature

‎Brake

Included Components

‎Unit^Instruction Guide

Product Dimensions

‎6.7"L x 4.2"W x 2.6"H

Voltage

‎200 Volts

Item Weight

‎1.76 ounces

Blade Length

‎10 Inches

Number of Teeth

‎10

Manufacturer

‎SawStop

Part Number

‎TSBC-10R2

Item model number

‎TSBC-10R2

Is Discontinued By Manufacturer

‎No

Style

‎Table Saw Brake Cartridge

Material

‎STEEL

Item Package Quantity

‎1

Number Of Pieces

‎1

Special Features

‎Brake

Protect Yourself Today

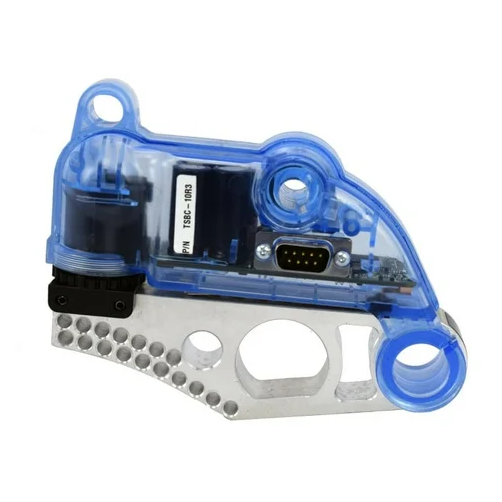

SawStop Standard Brake Cartridge

Revolutionary SawStop Protection

The Standard Brake Cartridge stops the spinning blade on contact with skin reducing the chances of a catastrophic injury. It is compatible with all standard 10" blades on SawStop saws. The locking key allows the user to quickly and easily switch between the Standard Brake Cartridge and Dado Brake Cartridge when making standard or dado cuts.

The Risk

According to the Consumer Products Safety Commission, there is a table saw injury every 9 minutes, and 10 amputations every day in the United States. Even the most safety-conscious woodworkers are at risk of an accident. And when that accident happens, the consequences are life-changing: extreme pain and trauma, loss of income-earning abilities, and loss of the ability to pursue hobbies. It's time to protect yourself. SawStop saws have saved thousands of fingers.

Features


Microprocessor The lightning fast microprocessor is always sensing for a drop in the voltage coming from the blade. It activates the safety system within 5 milliseconds once it detects contact with skin.	RS232 Port The RS232 port plugs the brake cartridge into the saw sending the signal to the blade. It is the interface between the microprocessor and the saw.	Debris Shield The mylar debris shield insulates the aluminum brake from metal particles. It helps avoid triggering an activation when cutting through nails, staples or screws.	Heavy-Duty Spring As soon as that microprocessor senses the drop in voltage, it sends a surge of electricity through a fuse wire that holds the spring in place. The heavy-duty spring is held under 150 pounds of pressure, and it pushes the aluminum block into the path of the blade stopping it within 5 milliseconds.

How It Works


Detect The blade carries a small electrical signal. When skin contacts the blade, the signal changes because the human body is conductive. The change to the signal activates the safety system.	Stop An aluminum brake springs into the path of the blade. The blade comes to a complete stop and power to the motor is shut off.	Drop After the blade comes to a stop, the blade's angular momentum drives it beneath the table, removing the risk of subsequent contact. All of this happens in less than 5 milliseconds.	Reset Resetting the saw yourself is easy. Simply inspect the blade for damage and replace the brake cartridge, and your saw is operational. This entire process takes 90 seconds and you're back to work.
